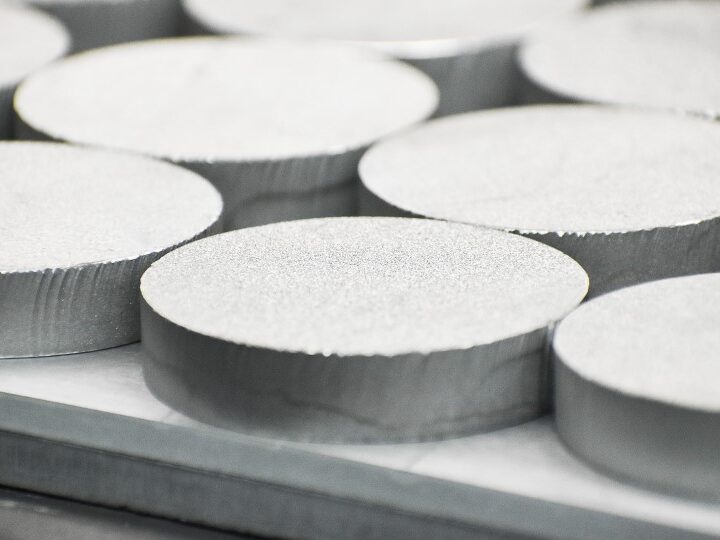

K1700 Tungsten Heavy Alloy
Elmet Technologies K1700 Tungsten Heavy Alloy (WHA) is a high-performance, non-magnetic material engineered for critical applications requiring exceptional strength, durability, and versatility. As a fully integrated, US-owned and operated global leader in refractory metals, we are proud to manufacture K1700 at our ISO-certified facility in Euclid, Ohio. With over 90 years of expertise and an unwavering commitment to quality, we deliver cutting-edge materials that drive innovation in the world’s most demanding industries.
Our K1700 is a Class 1 WHA specifically formulated with a composition of 90% tungsten, balanced with nickel and copper (W-Ni-Cu). This precise alloy composition makes K1700 non-magnetic, making it indispensable for sensitive electronic and shielding applications. By combining the extreme density of tungsten with the enhanced ductility and machinability from the nickel-copper binder, K1700 offers an exceptional balance of physical properties that provides engineers with the reliability they need to tackle their most demanding projects.
Typical Properties of K1700
| Alloy Description | K1700 | ET90 | |
| Tungsten Content | % | 90 |
| Density | (g/cm³) | 17.0 |
| (lb/in³) | 0.61 | |
| Hardness | (Rc) | ≤ 32 |
| Ultimate Tensile Strength | (ksi) | ≥ 110 |
| (N/mm²) = Mpa | ≥ 758 | |
| Yield Strength | (ksi) | ≥ 75 |
| (N/mm²) = Mpa | ≥ 517 | |
| Elongation | (%) | ≥ 5 |
| Modulus of Elasticity | (psi x 10^6) | 45 |
| (kN/mm²) | 310 | |
| Magnetic Properties | slight | |
| Magnetic Permeability | (µ) | > 1.05 |
| Thermal Expansion Coefficient | (x10^-6/K) (20ºC-500ºC) | 5.1 |
| Thermal Conductivity | (cgs) | 0.2 |
| Electrical Conductivity | (% IACS) | 11 |
| MIL-T-21014 | class | 1 |
| ASTM B777 | class | 1 |
| ASTM-T-21014 | class | 1 |
| AMS 7725 | Class 1 Type 2 | |
| Nominal Chemical Composiition | Ni content % Fe content % Cu content % Co content % W content % | 5.1 | 7.0 2.59 | 3.0 1.95 | = 0.1 | – 90.2 | 90.0 |
| Other Material Names | HA170, HD 17D, HD17BB, SD170, CMW 3000, K1700, M3000, MT-17F, EA17M |
Other chemical compositions are available upon request. To view the full data table, click the link below.
K1700 Tungsten Heavy Alloy Benefits
- Offers exceptional strength and durability, providing unmatched performance and longevity in demanding applications.
- Features one of the highest melting points of any metal, ensuring stability and integrity under extreme thermal conditions.
- Provides superior density, at twice that of steel, making it the ideal choice for counterweights and radiation shielding.
- Delivers enhanced machinability through alloying with nickel and copper, allowing for the creation of complex components with precision.
- Ensures versatility across critical industries, including aerospace, defense, and medical applications where high performance is essential.
Exceptional Density and Shielding Capabilities

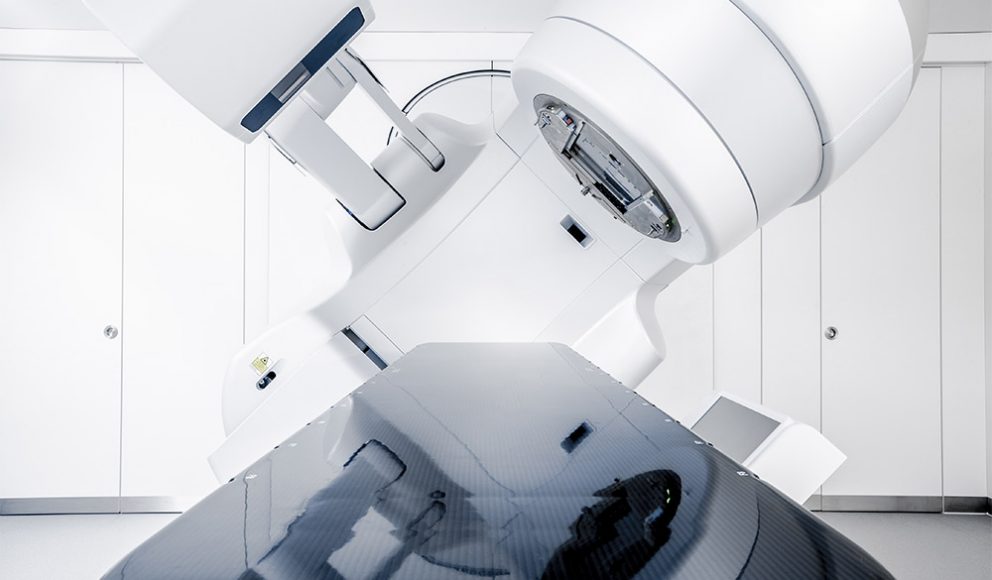

The defining characteristic of K1700 is its high-density strength of 17.0 g/cm³. This extreme density makes it highly efficient at attenuating radiation, enabling thinner, less bulky shielding components without compromising safety. Whether used in medical collimators or X-ray inspection equipment, K1700 provides maximum absorption of X-rays and gamma radiation. This capability is critical for protecting personnel and sensitive equipment in environments where space is at a premium and safety is paramount.
Superior Machinability and Advanced Fabrication

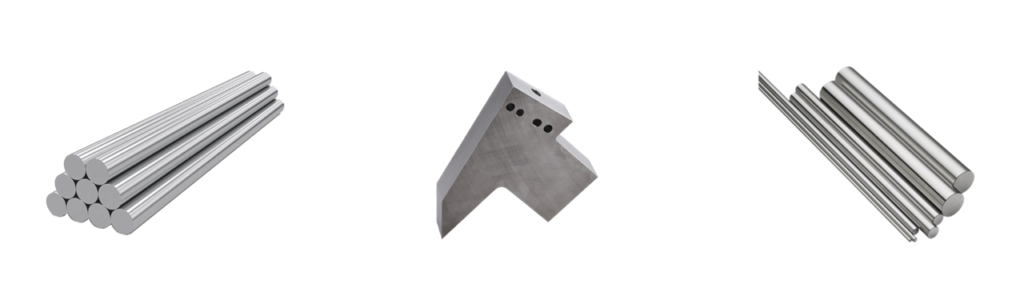

At Elmet Technologies, our K1700 material offers outstanding machinability, making it ideal for shaping into complex geometries with exceptionally tight tolerances. This high level of machinability, combined with its excellent ductility, enables our skilled technicians to efficiently fabricate intricate and precise parts, such as balancing weights and other custom components.
We leverage cutting-edge technology and decades of expertise to provide sophisticated precision machining capabilities, ensuring every finished component is ready for seamless integration into your application.
Your Trusted Partner for K1700 Tungsten Heavy Alloy
Partner with Elmet Technologies for high-quality tungsten heavy alloy solutions, proudly made in the USA. From raw material to fully machined components, our team is here to deliver the technical expertise and high-performance material needed for advanced applications. Contact our customer support team today to discuss your specific K1700 requirements and discover how our products can elevate your application’s performance.
